5 Multivariate Viz

Learning Goals

Warm-up (together)

Review univariate & bivariate viz ideas and code.

Exercises (in groups)

Explore how to visualize relationships between more than 2 variables.

Additional Resources

For more information about the topics covered in this chapter, refer to the resources below:

More ggplot (YouTube) by Lisa Lendway

Instructions

General

Be kind to yourself.
Collaborate with and be kind to others. You are expected to work together as a group.
Ask questions. Remember that we won’t discuss these exercises as a class.

Activity Specific

Help each other with the following:

Create a new Quarto document in the activities folder of your portfolio project and do not forgot to include it in _quarto.yml file. Then click the </> Code link at the top right corner of this page and copy the code into the created Quarto document. This is where you’ll take notes. Remember that the portfolio is yours, so take notes in whatever way is best for you.
Don’t start the Exercises section before we get there as a class. First, engage in class discussion and eventually collaborate with your group on the exercises!
There are some coding “intuition checks” along the way. The goal here is to start connecting to and expanding upon the structure of our ggplot() code. Don’t spend more than a few minutes trying these out. If you don’t get it, no problem! You can move on and learn the code in the next exercise.
The goal is for every student to finish the required exercises before we meet again. After that, choose your own adventure!
- If you’re feeling like the required exercises gave you plenty to chew on, simply stop the activity. Go back and review the material you learned. You never need to think about the optional exercises.
- If you’re feeling like your brain still has some space after completing the required exercises, try the optional ones. These exercises are either “bonus” visualizations or intuition checks about some material coming up.

5.1 Review

Let’s review some univariate and bivariate plotting concepts using some daily weather data from Australia. This is a subset of the data from the weatherAUS data in the rattle package.

library(tidyverse)

# Import data
weather <- read.csv("https://mac-stat.github.io/data/weather_3_locations.csv") |>
  mutate(date = as.Date(date))

# Check out the first 6 rows
# What are the units of observation?


# How many data points do we have?


# What type of variables do we have?

Example 1

Construct a plot that allows us to examine how temp3pm varies.

Example 2

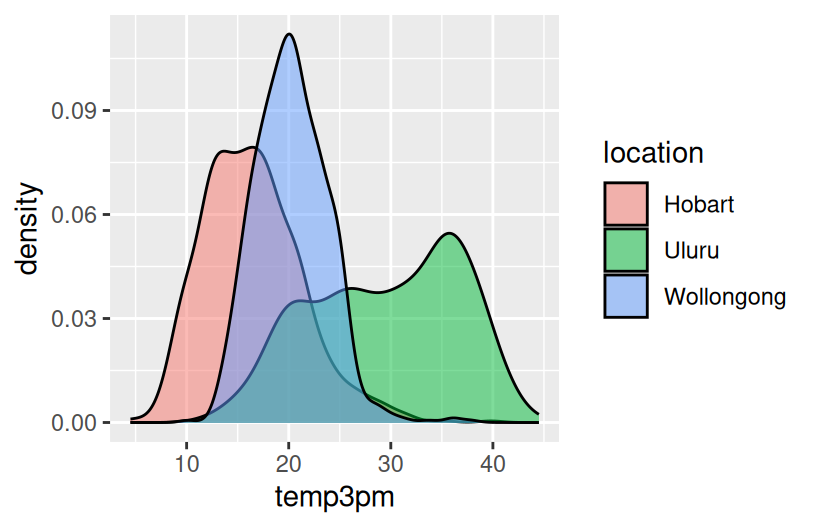

Construct 3 plots that address the following research question:

How do afternoon temperatures (temp3pm) differ by location?

# Plot 1 (no facets & starting from a density plot of temp3pm)
ggplot(weather, aes(x = temp3pm)) +
  geom_density()

# Plot 2 (no facets or densities)

# Plot 3 (facets)

Reflection

Temperatures tend to be highest, and most variable, in Uluru. There, they range from ~10 to ~45 with a typical temp around ~30 degrees.
Temperatures tend to be lowest in Hobart. There, they range from ~5 to ~45 with a typical temp around ~15 degrees.
Wollongong temps are in between and are the least variable from day to day.

SUBTLETIES: Defining fill or color by a variable

How we define the fill or color depends upon whether we’re defining it by a named color or by some variable in our dataset. For example:

geom___(fill = "blue")
named colors are defined outside the aesthetics and put in quotes
geom___(aes(fill = variable)) or ggplot(___, aes(fill = variable))
colors/fills defined by a variable are defined inside the aesthetics

Example 3

Let’s consider Wollongong alone:

# Don't worry about the syntax (we'll learn it soon)
woll <- weather |>
  filter(location == "Wollongong") |>
  mutate(date = as.Date(date))

# How often does it raintoday?
# Fill your geometric layer with the color blue.
ggplot(woll, aes(x = raintoday))

# If it does raintoday, what does this tell us about raintomorrow?
# Use your intuition first
ggplot(woll, aes(x = raintoday))

# Now compare different approaches

# Default: stacked bars
ggplot(woll, aes(x = raintoday, fill = raintomorrow)) +
  geom_bar()

# Side-by-side bars
ggplot(woll, aes(x = raintoday, fill = raintomorrow)) +
  geom_bar(position = "dodge")

# Proportional bars
# position = "fill" refers to filling the frame, nothing to do with the color-related fill
ggplot(woll, aes(x = raintoday, fill = raintomorrow)) +
  geom_bar(position = "fill")

Reflection

There’s often not one “best plot”, but a combination of plots that provide a complete picture:

The stacked and side-by-side bars reflect that on most days, it does not rain.
The proportional / filled bars lose that information, but make it easier to compare proportions: it’s more likely to rain tomorrow if it also rains today.

Example 4

Construct a plot that illustrates how 3pm temperatures (temp3pm) vary by date in Wollongong. Represent each day on the plot and use a curve/line to help highlight the trends.

# THINK: What variable goes on the y-axis?
# For the curve, try adding span = 0.5 to tweak the curvature

# Instead of a curve that captures the general TREND,
# draw a line that illustrates the movement of RAW temperatures from day to day
# NOTE: We haven't learned this geom yet! Guess.
ggplot(woll, aes(y = temp3pm, x = date))

NOTE: A line plot isn’t always appropriate! It can be useful in situations like this, when our data are chronological.

Reflection

There’s a seasonal / cyclic behavior in temperatures – they’re highest in January (around 23 degrees) and lowest in July (around 16 degrees). There are also some outliers – some abnormally hot and cold days.

5.2 New Stuff

Next, let’s consider the entire weather data for all 3 locations. The addition of location adds a 3rd variable into our research questions:

How does the relationship between raintoday and raintomorrow vary by location?
How does the behavior of temp3pm over date vary by location?
And so on.

Thus far, we’ve focused on the following components of a plot:

setting up a frame
adding layers / geometric elements
splitting the plot into facets for different groups / categories
change the theme, e.g. axis labels, color, fill

We’ll have to think about all of this, along with scales. Scales change the color, fill, size, shape, or other properties according to the levels of a new variable. This is different than just assigning scale by, for example, color = "blue".

Work on the examples below in your groups. Check in with your intuition! We’ll then discuss as a group as relevant.

Example 5

# Plot temp3pm vs temp9am
# Change the code in order to indicate the location to which each data point corresponds
ggplot(weather, aes(y = temp3pm, x = temp9am)) +
  geom_point()

# Change the code in order to indicate the location to which each data point corresponds
# AND identify the days on which it rained / didn't raintoday
ggplot(weather, aes(y = temp3pm, x = temp9am)) +
  geom_point()

# How many ways can you think to make that plot of temp3pm vs temp9am with info about location and rain?
# Play around!

Example 6

# Change the code in order to construct a line plot of temp3pm vs date for each separate location (no points!)
ggplot(weather, aes(y = temp3pm, x = date)) +
  geom_line()

Example 7

# Plot the relationship of raintomorrow & raintoday
# Change the code in order to indicate this relationship by location
ggplot(weather, aes(x = raintoday, fill = raintomorrow)) +
  geom_bar(position = "fill")

How to Not Get Overwhelmed?

There’s no end to the number and type of visualizations you could make. And it’s important to not just throw spaghetti at the wall until something sticks. FlowingData shows that one dataset can be visualized many ways, and makes good recommendations for data viz workflow, which we modify and build upon here:

Identify simple research questions.
What do you want to understand about the variables or the relationships among them?
Start with the basics and work incrementally.
- Identify what variables you want to include in your plot and what structure these have (eg: categorical, quantitative, dates)
- Start simply. Build a plot of just 1 of these variables, or the relationship between 2 of these variables.
- Set up a plotting frame and add just one geometric layer at a time.
- Start tweaking: add whatever new variables you want to examine,
Ask your plot questions.
- What questions does your plot answer? What questions are left unanswered by your plot?
- What new questions does your plot spark / inspire?
- Do you have the viz tools to answer these questions, or might you learn more?
Focus.
Reporting a large number of visualizations can overwhelm the audience and obscure your conclusions. Instead, pick out a focused yet comprehensive set of visualizations.

5.3 Exercises (required)

The story

Though far from a perfect assessment of academic preparedness, SAT scores have historically been used as one measurement of a state’s education system. The education dataset contains various education variables for each state:

# Import and check out data
education <- read.csv("https://mac-stat.github.io/data/sat.csv")
head(education)

       State expend ratio salary frac verbal math  sat  fracCat
1    Alabama  4.405  17.2 31.144    8    491  538 1029   (0,15]
2     Alaska  8.963  17.6 47.951   47    445  489  934 (45,100]
3    Arizona  4.778  19.3 32.175   27    448  496  944  (15,45]
4   Arkansas  4.459  17.1 28.934    6    482  523 1005   (0,15]
5 California  4.992  24.0 41.078   45    417  485  902  (15,45]
6   Colorado  5.443  18.4 34.571   29    462  518  980  (15,45]

A codebook is provided by Danny Kaplan who also made these data accessible:

Exercise 1: SAT scores

Part a

Construct a plot of how the average sat scores vary from state to state. (Just use 1 variable – sat not State!)

Part b

Summarize your observations from the plot. Comment on the basics: range, typical outcomes, shape. (Any theories about what might explain this non-normal shape?)

Exercise 2: SAT Scores vs Per Pupil Spending & SAT Scores vs Salaries

The first question we’d like to answer is: Can the variability in sat scores from state to state be partially explained by how much a state spends on education, specifically its per pupil spending (expend) and typical teacher salary?

Part a

# Construct a plot of sat vs expend
# Include a "best fit linear regression model" (HINT: method = "lm")

# Construct a plot of sat vs salary
# Include a "best fit linear regression model" (HINT: method = "lm")

Part b

What are the relationship trends between SAT scores and spending? Is there anything that surprises you?

Exercise 3: SAT Scores vs Per Pupil Spending and Teacher Salaries

Construct one visualization of the relationship of sat with salary and expend. HINT: Start with just 2 variables and tweak that code to add the third variable. Try out a few things!

Exercise 4: Another way to Incorporate Scale

It can be tough to distinguish color scales and size scales for quantitative variables. Another option is to discretize a quantitative variable, or basically cut it up into categories.

Construct the plot below. Check out the code and think about what’s happening here. What happens if you change “2” to “3”?

ggplot(education, aes(y = sat, x = salary, color = cut(expend, 2))) +
  geom_point() +
  geom_smooth(se = FALSE, method = "lm")

Describe the trivariate relationship between sat, salary, and expend.

Exercise 5: Finally an Explanation

It’s strange that SAT scores seem to decrease with spending. But we’re leaving out an important variable from our analysis: the fraction of a state’s students that actually take the SAT. The fracCat variable indicates this fraction: low (under 15% take the SAT), medium (15-45% take the SAT), and high (at least 45% take the SAT).

Part a

Build a univariate viz of fracCat to better understand how many states fall into each category.

Part b

Build 2 bivariate visualizations that demonstrate the relationship between sat and fracCat. What story does your graphic tell and why does this make contextual sense?

Part c

Make a trivariate visualization that demonstrates the relationship of sat with expend AND fracCat. Highlight the differences in fracCat groups through color AND unique trend lines. What story does your graphic tell?
Does it still seem that SAT scores decrease as spending increases?

Part d

Putting all of this together, explain this example of Simpson’s Paradox. That is, why did it appear that SAT scores decrease as spending increases even though the opposite is true?

5.4 Exercises (optional)

Exercise 6: Heat Maps

As usual, we’ve only just scratched the surface! There are lots of other data viz techniques for exploring multivariate relationships. Let’s start with a heat map.

Part a

Run the chunks below. Check out the code, but don’t worry about every little detail! NOTES:

This is not part of the ggplot() grammar, making it a bit complicated.
If you’re curious about what a line in the plot does, comment it out (#) and check out what happens!
In the plot, for each state (row), each variable (column) is scaled to indicate whether the state has a relative high value (yellow), a relatively low value (purple), or something in between (blues/greens).
You can also play with the color scheme. Type ?cm.colors in the console to learn about various options.
We’ll improve the plot later, so don’t spend too much time trying to learn something from this plot.

# Remove the "State" column and use it to label the rows
# Then scale the variables
plot_data <- education |>
  column_to_rownames("State") |>
  data.matrix() |>
  scale()

# Load the gplots package needed for heatmaps
library(gplots)

# Construct heatmap 1
heatmap.2(plot_data,
  dendrogram = "none",
  Rowv = NA,
  scale = "column",
  keysize = 0.7,
  density.info = "none",
  col = hcl.colors(256),
  margins = c(10, 20),
  colsep = c(1:7), rowsep = (1:50), sepwidth = c(0.05, 0.05),
  sepcolor = "white", trace = "none"
)

# Construct heatmap 2
heatmap.2(plot_data,
  dendrogram = "none",
  Rowv = TRUE,             ### WE CHANGED THIS FROM NA TO TRUE
  scale = "column",
  keysize = 0.7,
  density.info = "none",
  col = hcl.colors(256),
  margins = c(10, 20),
  colsep = c(1:7), rowsep = (1:50), sepwidth = c(0.05, 0.05),
  sepcolor = "white", trace = "none"
)

# Construct heatmap 3
heatmap.2(plot_data,
  dendrogram = "row",       ### WE CHANGED THIS FROM "none" TO "row"
  Rowv = TRUE,
  scale = "column",
  keysize = 0.7,
  density.info = "none",
  col = hcl.colors(256),
  margins = c(10, 20),
  colsep = c(1:7), rowsep = (1:50), sepwidth = c(0.05, 0.05),
  sepcolor = "white", trace = "none"
)

Part b

In the final two plots, the states (rows) are rearranged by similarity with respect to these education metrics. The final plot includes a dendrogram which further indicates clusters of similar states. In short, states that have a shorter path to connection are more similar than others.

Putting this all together, what insight do you gain about the education trends across U.S. states? Which states are similar? In what ways are they similar? Are there any outliers with respect to 1 or more of the education metrics?

Exercise 7: Star plots

Like heat maps, star plots indicate the relative scale of each variable for each state. Thus, we can use star maps to identify similar groups of states, and unusual states!

Part a

Construct and check out the star plot below. Note that each state has a “pie”, with each segment corresponding to a different variable. The larger a segment, the larger that variable’s value is in that state. For example:

Check out Minnesota. How does Minnesota’s education metrics compare to those in other states? What metrics are relatively high? Relatively low?
What states appear to be similar? Do these observations agree with those that you gained from the heat map?

stars(plot_data,
  flip.labels = FALSE,
  key.loc = c(10, 1.5),
  cex = 1,
  draw.segments = TRUE
)

Part b

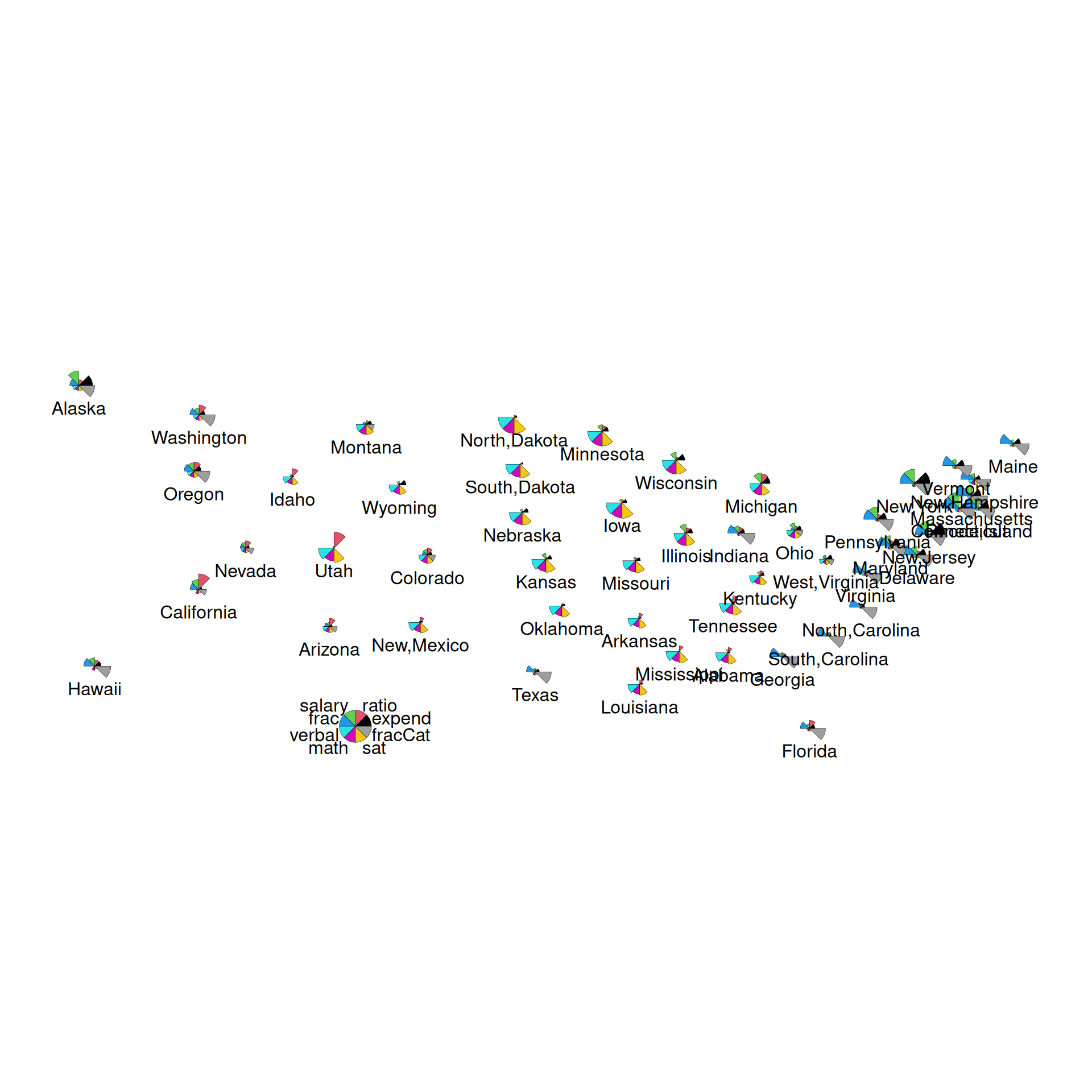

Finally, let’s plot the state stars by geographic location! What new insight do you gain here?!

stars(plot_data,
  flip.labels = FALSE,
  locations = data.matrix(as.data.frame(state.center)),  # added external data to arrange by geo location
  key.loc = c(-110, 28),
  cex = 1,
  draw.segments = TRUE
)

5.5 Solutions

Click for Solutions

library(tidyverse)

# Import data
weather <- read.csv("https://mac-stat.github.io/data/weather_3_locations.csv") |>
  mutate(date = as.Date(date))

# Check out the first 6 rows
# What are the units of observation?
head(weather)

        date   location mintemp maxtemp rainfall evaporation sunshine
1 2020-01-01 Wollongong    17.1    23.1        0          NA       NA
2 2020-01-02 Wollongong    17.7    24.2        0          NA       NA
3 2020-01-03 Wollongong    19.7    26.8        0          NA       NA
4 2020-01-04 Wollongong    20.4    35.5        0          NA       NA
5 2020-01-05 Wollongong    19.8    21.4        0          NA       NA
6 2020-01-06 Wollongong    18.3    22.9        0          NA       NA
  windgustdir windgustspeed winddir9am winddir3pm windspeed9am windspeed3pm
1         SSW            39        SSW        SSE           20           15
2         SSW            37          S        ENE           13           15
3          NE            41        NNW        NNE            7           17
4         SSW            78         NE        NNE           15           17
5         SSW            57        SSW          S           31           35
6          NE            35        ESE         NE           17           20
  humidity9am humidity3pm pressure9am pressure3pm cloud9am cloud3pm temp9am
1          69          64      1014.9      1014.0        8        1    19.1
2          72          54      1020.1      1017.7        7        1    19.8
3          72          71      1017.5      1013.0        6       NA    23.4
4          77          69      1008.8      1003.9       NA       NA    24.5
5          70          75      1018.9      1019.9       NA        7    20.7
6          71          71      1021.2      1018.2       NA       NA    20.9
  temp3pm raintoday risk_mm raintomorrow
1    22.9        No     0.0           No
2    23.6        No     0.0           No
3    25.7        No     0.0           No
4    26.7        No     0.0           No
5    20.0        No     0.0           No
6    22.6        No     0.8           No

# How many data points do we have?
nrow(weather)

[1] 2367

# What type of variables do we have?
str(weather)

'data.frame':   2367 obs. of  24 variables:
 $ date         : Date, format: "2020-01-01" "2020-01-02" ...
 $ location     : chr  "Wollongong" "Wollongong" "Wollongong" "Wollongong" ...
 $ mintemp      : num  17.1 17.7 19.7 20.4 19.8 18.3 19.9 20.1 19.8 20.5 ...
 $ maxtemp      : num  23.1 24.2 26.8 35.5 21.4 22.9 25.6 23.2 23.1 25.4 ...
 $ rainfall     : num  0 0 0 0 0 0 0.8 1.6 0 0 ...
 $ evaporation  : num  NA NA NA NA NA NA NA NA NA NA ...
 $ sunshine     : num  NA NA NA NA NA NA NA NA NA NA ...
 $ windgustdir  : chr  "SSW" "SSW" "NE" "SSW" ...
 $ windgustspeed: int  39 37 41 78 57 35 44 41 39 56 ...
 $ winddir9am   : chr  "SSW" "S" "NNW" "NE" ...
 $ winddir3pm   : chr  "SSE" "ENE" "NNE" "NNE" ...
 $ windspeed9am : int  20 13 7 15 31 17 30 31 24 19 ...
 $ windspeed3pm : int  15 15 17 17 35 20 7 33 26 39 ...
 $ humidity9am  : int  69 72 72 77 70 71 76 77 76 79 ...
 $ humidity3pm  : int  64 54 71 69 75 71 72 76 79 76 ...
 $ pressure9am  : num  1015 1020 1018 1009 1019 ...
 $ pressure3pm  : num  1014 1018 1013 1004 1020 ...
 $ cloud9am     : int  8 7 6 NA NA NA NA 8 NA NA ...
 $ cloud3pm     : int  1 1 NA NA 7 NA NA NA NA NA ...
 $ temp9am      : num  19.1 19.8 23.4 24.5 20.7 20.9 22.9 21.3 21.2 23 ...
 $ temp3pm      : num  22.9 23.6 25.7 26.7 20 22.6 24.9 22.2 22.2 25.1 ...
 $ raintoday    : chr  "No" "No" "No" "No" ...
 $ risk_mm      : num  0 0 0 0 0 0.8 1.6 0 0 1 ...
 $ raintomorrow : chr  "No" "No" "No" "No" ...

Example 1

ggplot(weather, aes(x = temp3pm)) +
  geom_density()

Example 2

# Plot 1 (no facets & starting from a density plot of temp3pm)
ggplot(weather, aes(x = temp3pm, fill = location)) +
  geom_density(alpha = 0.5)

# Plot 2 (no facets or densities)
ggplot(weather, aes(y = temp3pm, x = location)) +
  geom_boxplot()

# Plot 3 (facets)
ggplot(weather, aes(x = temp3pm, fill = location)) +
  geom_density(alpha = 0.5) +
  facet_wrap(~ location)

Example 3

# How often does it raintoday?
# Fill your geometric layer with the color blue.
ggplot(woll, aes(x = raintoday)) +
  geom_bar(fill = "blue")

# If it does raintoday, what does this tell us about raintomorrow?
# Use your intuition first
ggplot(woll, aes(x = raintoday)) +
  geom_bar(aes(fill = raintomorrow))

ggplot(woll, aes(x = raintoday, fill = raintomorrow)) +
  geom_bar()

# Now compare different approaches

# Default: stacked bars
ggplot(woll, aes(x = raintoday, fill = raintomorrow)) +
  geom_bar()

# Side-by-side bars
ggplot(woll, aes(x = raintoday, fill = raintomorrow)) +
  geom_bar(position = "dodge")

# Proportional bars
# position = "fill" refers to filling the frame, nothing to do with the color-related fill
ggplot(woll, aes(x = raintoday, fill = raintomorrow)) +
  geom_bar(position = "fill")

Example 4

# THINK: What variable goes on the y-axis?
# For the curve, try adding span = 0.5 to tweak the curvature
ggplot(woll, aes(y = temp3pm, x = date)) +
  geom_point() +
  geom_smooth(span = 0.5)

# Instead of a curve that captures the general TREND,
# draw a line that illustrates the movement of RAW temperatures from day to day
# NOTE: We haven't learned this geom yet! Guess.
ggplot(woll, aes(y = temp3pm, x = date)) +
  geom_line()

Example 5

# Plot temp3pm vs temp9am
# Change the code in order to indicate the location to which each data point corresponds
ggplot(weather, aes(y = temp3pm, x = temp9am, color = location)) +
  geom_point()

# Change the code in order to indicate the location to which each data point corresponds
# AND identify the days on which it rained / didn't raintoday
ggplot(weather, aes(y = temp3pm, x = temp9am, color = location)) +
  geom_point() +
  facet_wrap(~ raintoday)

# How many ways can you think to make that plot of temp3pm vs temp9am with info about location and rain?
# Play around!

ggplot(weather, aes(y = temp3pm, x = temp9am, color = location, shape = raintoday)) +
  geom_point()

Example 6

# Change the code in order to construct a line plot of temp3pm vs date for each separate location (no points!)
ggplot(weather, aes(y = temp3pm, x = date, color = location)) +
  geom_line()

Example 7

# Plot the relationship of raintomorrow & raintoday
# Change the code in order to indicate this relationship by location
ggplot(weather, aes(x = raintoday, fill = raintomorrow)) +
  geom_bar(position = "fill") +
  facet_wrap(~ location)

Exercise 1: SAT scores

Part a

# A histogram would work too!
ggplot(education, aes(x = sat)) +
  geom_density()

Part b

average SAT scores range from roughly 800 to 1100. They appear bi-modal.

Exercise 2: SAT Scores vs Per Pupil Spending & SAT Scores vs Salaries

Part a

# Construct a plot of sat vs expend
# Include a "best fit linear regression model"
ggplot(education, aes(y = sat, x = expend)) +
  geom_point() +
  geom_smooth(method = "lm")

# Construct a plot of sat vs salary
# Include a "best fit linear regression model"
ggplot(education, aes(y = sat, x = salary)) +
  geom_point() +
  geom_smooth(method = "lm")

Part b

The higher the student expenditures and teacher salaries, the worse the SAT performance.

Exercise 3: SAT Scores vs Per Pupil Spending and Teacher Salaries

ggplot(education, aes(y = sat, x = salary, color = expend)) +
  geom_point() +
  geom_smooth(method = "lm")

Exercise 4: Another Way to Incorporate Scale

ggplot(education, aes(y = sat, x = salary, color = cut(expend, 2))) +
  geom_point() +
  geom_smooth(se = FALSE, method = "lm")

ggplot(education, aes(y = sat, x = salary, color = cut(expend, 3))) +
  geom_point() +
  geom_smooth(se = FALSE, method = "lm")

States with lower salaries and expenditures tend to have higher SAT scores.

Exercise 5: Finally an Explanation

Part a

ggplot(education, aes(x = fracCat)) +
  geom_bar()

Part b

The more students in a state that take the SAT, the lower the average scores tend to be. This is probably related to self-selection.

ggplot(education, aes(x = sat, fill = fracCat)) +
  geom_density(alpha = 0.5)

Part c

When we control for the fraction of students that take the SAT, SAT scores increase with expenditure.

ggplot(education, aes(y = sat, x = expend, color = fracCat)) +
  geom_point() +
  geom_smooth(method = "lm")

Part d

Student participation tends to be lower among states with lower expenditures (which are likely also the states with higher ed institutions that haven’t historically required the SAT). Those same states tend to have higher SAT scores because of the self-selection of who participates.

Exercise 6: Heat Maps

Part a

# Remove the "State" column and use it to label the rows
# Then scale the variables
plot_data <- education |>
  column_to_rownames("State") |>
  data.matrix() |>
  scale()

# Load the gplots package needed for heatmaps
library(gplots)

# Construct heatmap 1
heatmap.2(plot_data,
  dendrogram = "none",
  Rowv = NA,
  scale = "column",
  keysize = 0.7,
  density.info = "none",
  col = hcl.colors(256),
  margins = c(10, 20),
  colsep = c(1:7), rowsep = (1:50), sepwidth = c(0.05, 0.05),
  sepcolor = "white", trace = "none"
)

# Construct heatmap 2
heatmap.2(plot_data,
  dendrogram = "none",
  Rowv = TRUE,             ### WE CHANGED THIS FROM NA TO TRUE
  scale = "column",
  keysize = 0.7,
  density.info = "none",
  col = hcl.colors(256),
  margins = c(10, 20),
  colsep = c(1:7), rowsep = (1:50), sepwidth = c(0.05, 0.05),
  sepcolor = "white", trace = "none"
)

# Construct heatmap 3
heatmap.2(plot_data,
  dendrogram = "row",       ### WE CHANGED THIS FROM "none" TO "row"
  Rowv = TRUE,
  scale = "column",
  keysize = 0.7,
  density.info = "none",
  col = hcl.colors(256),
  margins = c(10, 20),
  colsep = c(1:7), rowsep = (1:50), sepwidth = c(0.05, 0.05),
  sepcolor = "white", trace = "none"
)

Part b

Similar values in verbal, math, and sat.
High contrast (an inverse relationship) verbal/math/sat scores and the fraction of students that take the SAT.
Outliers of Utah and California in ratio (more students per teacher).
While grouped, fraction and salary are not as similar to each other as the sat scores; it is also interesting to notice states that have high ratios have generally low expenditures per student.

Exercise 7: Star Plots

Part a

MN is high on the SAT performance related metrics and low on everything else. MN is similar to Iowa, Kansas, Mississippi, Missouri, the Dakotas…

stars(plot_data,
  flip.labels = FALSE,
  key.loc = c(10, 1.5),
  cex = 1,
  draw.segments = TRUE
)

Part b

When the states are in geographical ordering, we’d notice more easily that states in similar regions of the U.S. have similar patterns of these variables.

stars(plot_data,
  flip.labels = FALSE,
  locations = data.matrix(as.data.frame(state.center)),  # added external data to arrange by geo location
  key.loc = c(-110, 28),
  cex = 1,
  draw.segments = TRUE
)

--- title: "Multivariate Viz" number-sections: true execute: warning: false fig-height: 2.75 fig-width: 4.25 fig-env: 'figure' fig-pos: 'h' fig-align: center code-fold: false --- ::: {.callout-caution title="Learning Goals"} **Warm-up (together)** - Review univariate & bivariate viz ideas and code. **Exercises (in groups)** - Explore how to visualize *relationships* between *more than* 2 variables. ::: ::: {.callout-note title="Additional Resources"} For more information about the topics covered in this chapter, refer to the resources below: - [More ggplot (YouTube)](https://www.youtube.com/watch?v=bkAJ3FAAGqA) by Lisa Lendway ::: ::: {.callout-important title="Instructions"} **General** - Be kind to yourself. - Collaborate with and be kind to others. You are expected to work together as a group. - Ask questions. Remember that we won't discuss these exercises as a class. **Activity Specific** Help each other with the following: - Create a new Quarto document in the activities folder of your portfolio project and do not forgot to include it in `_quarto.yml` file. Then click the `</> Code` link at the top right corner of this page and copy the code into the created Quarto document. This is where you'll take notes. Remember that the portfolio is yours, so take notes in whatever way is best for you. - **Don't start the Exercises section before we get there as a class.** First, engage in class discussion and eventually collaborate with your group on the exercises! - There are some coding "intuition checks" along the way. The goal here is to start connecting to and expanding upon the structure of our `ggplot()` code. Don't spend more than a few minutes trying these out. If you don't get it, no problem! You can move on and learn the code in the next exercise. - The goal is for every student to finish the required exercises before we meet again. After that, choose your own adventure! - If you're feeling like the required exercises gave you plenty to chew on, simply stop the activity. Go back and review the material you learned. *You never need to think about the optional exercises.* - If you're feeling like your brain still has some space after completing the required exercises, try the optional ones. These exercises are either "bonus" visualizations or intuition checks about some material coming up. ::: ## Review Let's review some *univariate* and *bivariate* plotting concepts using some daily weather data from Australia. This is a subset of the data from the `weatherAUS` data in the `rattle` package. ```{r} library(tidyverse) # Import data weather <- read.csv("https://mac-stat.github.io/data/weather_3_locations.csv") |> mutate(date = as.Date(date)) # Check out the first 6 rows # What are the units of observation? # How many data points do we have? # What type of variables do we have? ``` ### Example 1 {-} Construct a plot that allows us to examine how `temp3pm` varies. ```{r} ``` ### Example 2 {-} Construct 3 plots that address the following research question: How do afternoon temperatures (`temp3pm`) differ by `location`? ```{r} # Plot 1 (no facets & starting from a density plot of temp3pm) ggplot(weather, aes(x = temp3pm)) + geom_density() ``` ```{r} # Plot 2 (no facets or densities) ``` ```{r} # Plot 3 (facets) ``` #### Reflection {-} - Temperatures tend to be highest, and most variable, in Uluru. There, they range from \~10 to \~45 with a typical temp around \~30 degrees. - Temperatures tend to be lowest in Hobart. There, they range from \~5 to \~45 with a typical temp around \~15 degrees. - Wollongong temps are in between and are the least variable from day to day. **SUBTLETIES: Defining `fill` or `color` by a variable** How we define the `fill` or `color` depends upon whether we're defining it by a named color or by some variable in our dataset. For example: - `geom___(fill = "blue")` \ *named* colors are defined outside the `aes`thetics and put in quotes - `geom___(aes(fill = variable))` or `ggplot(___, aes(fill = variable))` \ colors/fills defined by a *variable* are defined inside the `aes`thetics ### Example 3 {-} Let's consider Wollongong alone: ```{r} # Don't worry about the syntax (we'll learn it soon) woll <- weather |> filter(location == "Wollongong") |> mutate(date = as.Date(date)) ``` ```{r} # How often does it raintoday? # Fill your geometric layer with the color blue. ggplot(woll, aes(x = raintoday)) ``` ```{r} # If it does raintoday, what does this tell us about raintomorrow? # Use your intuition first ggplot(woll, aes(x = raintoday)) ``` ```{r} # Now compare different approaches # Default: stacked bars ggplot(woll, aes(x = raintoday, fill = raintomorrow)) + geom_bar() ``` ```{r} # Side-by-side bars ggplot(woll, aes(x = raintoday, fill = raintomorrow)) + geom_bar(position = "dodge") ``` ```{r} # Proportional bars # position = "fill" refers to filling the frame, nothing to do with the color-related fill ggplot(woll, aes(x = raintoday, fill = raintomorrow)) + geom_bar(position = "fill") ``` #### Reflection {-} There's often not one "best plot", but a *combination* of plots that provide a complete picture: - The stacked and side-by-side bars reflect that on most days, it does *not* rain. - The proportional / filled bars *lose* that information, but make it easier to compare proportions: it's more likely to rain tomorrow if it also rains today. ### Example 4 {-} Construct a plot that illustrates how 3pm temperatures (temp3pm) vary by `date` in Wollongong. Represent each day on the plot and use a curve/line to help highlight the trends. ```{r} # THINK: What variable goes on the y-axis? # For the curve, try adding span = 0.5 to tweak the curvature ``` ```{r} # Instead of a curve that captures the general TREND, # draw a line that illustrates the movement of RAW temperatures from day to day # NOTE: We haven't learned this geom yet! Guess. ggplot(woll, aes(y = temp3pm, x = date)) ``` **NOTE:** A line plot isn't always appropriate! It can be useful in situations like this, when our data are chronological. #### Reflection {-} There's a seasonal / cyclic behavior in temperatures -- they're highest in January (around 23 degrees) and lowest in July (around 16 degrees). There are also some outliers -- some abnormally hot and cold days. ## New Stuff Next, let's consider the entire `weather` data for all 3 locations. The addition of `location` adds a 3rd variable into our research questions: - How does the relationship between `raintoday` and `raintomorrow` vary by `location`? - How does the behavior of `temp3pm` over `date` vary by `location`? - And so on. Thus far, we've focused on the following components of a plot: - setting up a **frame** - adding **layers** / geometric elements - splitting the plot into **facets** for different groups / categories - change the **theme**, e.g. axis labels, color, fill We'll have to think about all of this, along with **scales**. Scales change the color, fill, size, shape, or other properties according to the levels of a new *variable*. This is different than just assigning scale by, for example, `color = "blue"`. Work on the examples below in your groups. Check in with your intuition! We'll then discuss as a group as relevant. ### Example 5 {-} ```{r} # Plot temp3pm vs temp9am # Change the code in order to indicate the location to which each data point corresponds ggplot(weather, aes(y = temp3pm, x = temp9am)) + geom_point() ``` ```{r} # Change the code in order to indicate the location to which each data point corresponds # AND identify the days on which it rained / didn't raintoday ggplot(weather, aes(y = temp3pm, x = temp9am)) + geom_point() ``` ```{r} # How many ways can you think to make that plot of temp3pm vs temp9am with info about location and rain? # Play around! ``` ### Example 6 {-} ```{r} # Change the code in order to construct a line plot of temp3pm vs date for each separate location (no points!) ggplot(weather, aes(y = temp3pm, x = date)) + geom_line() ``` ### Example 7 {-} ```{r} # Plot the relationship of raintomorrow & raintoday # Change the code in order to indicate this relationship by location ggplot(weather, aes(x = raintoday, fill = raintomorrow)) + geom_bar(position = "fill") ``` ::: {.callout-tip title="How to Not Get Overwhelmed?"} There's no end to the number and type of visualizations you *could* make. And it's important to not just throw spaghetti at the wall until something sticks. [FlowingData](http://flowingdata.com/2017/01/24/one-dataset-visualized-25-ways/) shows that one dataset can be visualized *many* ways, and makes good recommendations for data viz workflow, which we modify and build upon here: - **Identify simple research questions.**\ What do you want to understand about the variables or the relationships among them? - **Start with the basics and work incrementally.** - Identify what variables you want to include in your plot and what structure these have (eg: categorical, quantitative, dates) - Start simply. Build a plot of just 1 of these variables, or the relationship between 2 of these variables. - Set up a plotting frame and add just **one geometric layer at a time**. - Start tweaking: add whatever new variables you want to examine, - **Ask your plot questions.** - What questions *does* your plot answer? What questions are left *unanswered* by your plot? - What *new* questions does your plot spark / inspire? - Do you have the viz tools to answer these questions, or might you learn more? - **Focus.**\ Reporting a large number of visualizations can overwhelm the audience and obscure your conclusions. Instead, pick out a focused yet comprehensive set of visualizations. ::: ## Exercises (required) ### The story {-} Though far from a perfect assessment of academic preparedness, SAT scores have historically been used as one measurement of a state's education system. The `education` dataset contains various education variables for each state: ```{r} # Import and check out data education <- read.csv("https://mac-stat.github.io/data/sat.csv") head(education) ``` A codebook is provided by Danny Kaplan who also made these data accessible: ![](https://mac-stat.github.io/images/112/SATcodebook.png) ### Exercise 1: SAT scores {-} #### Part a {-} Construct a plot of how the average `sat` scores vary from state to state. (Just use 1 variable -- `sat` not `State`!) ```{r} ``` #### Part b {-} Summarize your observations from the plot. Comment on the basics: range, typical outcomes, shape. (Any theories about what might explain this non-normal shape?) ### Exercise 2: SAT Scores vs Per Pupil Spending & SAT Scores vs Salaries {-} The first question we'd like to answer is: Can the variability in `sat` scores from state to state be partially explained by how much a state spends on education, specifically its per pupil spending (`expend`) and typical teacher `salary`? #### Part a {-} ```{r} # Construct a plot of sat vs expend # Include a "best fit linear regression model" (HINT: method = "lm") ``` ```{r} # Construct a plot of sat vs salary # Include a "best fit linear regression model" (HINT: method = "lm") ``` #### Part b {-} What are the relationship trends between SAT scores and spending? Is there anything that surprises you? ### Exercise 3: SAT Scores vs Per Pupil Spending *and* Teacher Salaries {-} Construct *one* visualization of the relationship of `sat` with `salary` *and* `expend`. HINT: Start with just 2 variables and tweak that code to add the third variable. Try out a few things! ```{r} ``` ### Exercise 4: Another way to Incorporate Scale {-} It can be tough to distinguish color scales and size scales for quantitative variables. Another option is to *discretize* a quantitative variable, or basically cut it up into *categories*. Construct the plot below. Check out the code and think about what's happening here. What happens if you change "2" to "3"? ```{r eval = FALSE} ggplot(education, aes(y = sat, x = salary, color = cut(expend, 2))) + geom_point() + geom_smooth(se = FALSE, method = "lm") ``` Describe the trivariate relationship between `sat`, `salary`, and `expend`. ### Exercise 5: Finally an Explanation {-} It's strange that SAT scores *seem* to decrease with spending. But we're leaving out an important variable from our analysis: the fraction of a state's students that actually take the SAT. The `fracCat` variable indicates this fraction: `low` (under 15% take the SAT), `medium` (15-45% take the SAT), and `high` (at least 45% take the SAT). #### Part a {-} Build a univariate viz of `fracCat` to better understand how many states fall into each category. ```{r} ``` #### Part b {-} Build 2 bivariate visualizations that demonstrate the relationship between `sat` and `fracCat`. What story does your graphic tell and why does this make contextual sense? ```{r} ``` #### Part c {-} Make a trivariate visualization that demonstrates the relationship of `sat` with `expend` AND `fracCat`. Highlight the differences in `fracCat` groups through color AND unique trend lines. What story does your graphic tell?\ Does it still seem that SAT scores decrease as spending increases? ```{r} ``` #### Part d {-} Putting all of this together, explain this example of **Simpson’s Paradox**. That is, why did it appear that SAT scores decrease as spending increases even though the *opposite* is true? ## Exercises (optional) ### Exercise 6: Heat Maps {-} As usual, we've only just scratched the surface! There are lots of other data viz techniques for exploring multivariate relationships. Let's start with a **heat map**. #### Part a {-} Run the chunks below. Check out the code, but don't worry about every little detail! NOTES: - This is *not* part of the `ggplot()` grammar, making it a bit complicated. - If you're curious about what a line in the plot does, comment it out (`#`) and check out what happens! - In the plot, for each state (row), each variable (column) is scaled to indicate whether the state has a relative high value (yellow), a relatively low value (purple), or something in between (blues/greens). - You can also play with the color scheme. Type `?cm.colors` in the *console* to learn about various options. - We'll improve the plot later, so don't spend too much time trying to learn something from this plot. ```{r eval = FALSE, fig.width = 8, fig.height = 15} # Remove the "State" column and use it to label the rows # Then scale the variables plot_data <- education |> column_to_rownames("State") |> data.matrix() |> scale() # Load the gplots package needed for heatmaps library(gplots) # Construct heatmap 1 heatmap.2(plot_data, dendrogram = "none", Rowv = NA, scale = "column", keysize = 0.7, density.info = "none", col = hcl.colors(256), margins = c(10, 20), colsep = c(1:7), rowsep = (1:50), sepwidth = c(0.05, 0.05), sepcolor = "white", trace = "none" ) ``` ```{r eval = FALSE, fig.width = 8, fig.height = 15} # Construct heatmap 2 heatmap.2(plot_data, dendrogram = "none", Rowv = TRUE, ### WE CHANGED THIS FROM NA TO TRUE scale = "column", keysize = 0.7, density.info = "none", col = hcl.colors(256), margins = c(10, 20), colsep = c(1:7), rowsep = (1:50), sepwidth = c(0.05, 0.05), sepcolor = "white", trace = "none" ) ``` ```{r eval = FALSE, fig.width = 8, fig.height = 15} # Construct heatmap 3 heatmap.2(plot_data, dendrogram = "row", ### WE CHANGED THIS FROM "none" TO "row" Rowv = TRUE, scale = "column", keysize = 0.7, density.info = "none", col = hcl.colors(256), margins = c(10, 20), colsep = c(1:7), rowsep = (1:50), sepwidth = c(0.05, 0.05), sepcolor = "white", trace = "none" ) ``` #### Part b {-} In the final two plots, the states (rows) are rearranged by similarity with respect to these education metrics. The *final* plot includes a **dendrogram** which further indicates *clusters* of similar states. In short, states that have a shorter path to connection are more similar than others. Putting this all together, what insight do you gain about the education trends across U.S. states? Which states are similar? In what ways are they similar? Are there any outliers with respect to 1 or more of the education metrics? ### Exercise 7: Star plots {-} Like heat maps, star plots indicate the relative scale of each variable for each state. Thus, we can use star maps to identify similar groups of states, and unusual states! #### Part a {-} Construct and check out the star plot below. Note that each state has a "pie", with each segment corresponding to a different variable. The larger a segment, the larger that variable's value is in that state. For example: - Check out Minnesota. How does Minnesota's education metrics compare to those in other states? What metrics are relatively high? Relatively low? - What states appear to be similar? Do these observations agree with those that you gained from the heat map? ```{r eval = FALSE, fig.width = 10, fig.height = 20} stars(plot_data, flip.labels = FALSE, key.loc = c(10, 1.5), cex = 1, draw.segments = TRUE ) ``` #### Part b {-} Finally, let's plot the state stars by *geographic* location! What new insight do you gain here?! ```{r eval = FALSE, fig.width = 10, fig.height = 7} stars(plot_data, flip.labels = FALSE, locations = data.matrix(as.data.frame(state.center)), # added external data to arrange by geo location key.loc = c(-110, 28), cex = 1, draw.segments = TRUE ) ``` ## Solutions <details> <summary>Click for Solutions</summary> ```{r} library(tidyverse) # Import data weather <- read.csv("https://mac-stat.github.io/data/weather_3_locations.csv") |> mutate(date = as.Date(date)) # Check out the first 6 rows # What are the units of observation? head(weather) # How many data points do we have? nrow(weather) # What type of variables do we have? str(weather) ``` ### Example 1 {-} ```{r} ggplot(weather, aes(x = temp3pm)) + geom_density() ``` ### Example 2 {-} ```{r} # Plot 1 (no facets & starting from a density plot of temp3pm) ggplot(weather, aes(x = temp3pm, fill = location)) + geom_density(alpha = 0.5) ``` ```{r} # Plot 2 (no facets or densities) ggplot(weather, aes(y = temp3pm, x = location)) + geom_boxplot() ``` ```{r} # Plot 3 (facets) ggplot(weather, aes(x = temp3pm, fill = location)) + geom_density(alpha = 0.5) + facet_wrap(~ location) ``` ### Example 3 {-} ```{r} # How often does it raintoday? # Fill your geometric layer with the color blue. ggplot(woll, aes(x = raintoday)) + geom_bar(fill = "blue") ``` ```{r} # If it does raintoday, what does this tell us about raintomorrow? # Use your intuition first ggplot(woll, aes(x = raintoday)) + geom_bar(aes(fill = raintomorrow)) ggplot(woll, aes(x = raintoday, fill = raintomorrow)) + geom_bar() ``` ```{r} # Now compare different approaches # Default: stacked bars ggplot(woll, aes(x = raintoday, fill = raintomorrow)) + geom_bar() ``` ```{r} # Side-by-side bars ggplot(woll, aes(x = raintoday, fill = raintomorrow)) + geom_bar(position = "dodge") ``` ```{r} # Proportional bars # position = "fill" refers to filling the frame, nothing to do with the color-related fill ggplot(woll, aes(x = raintoday, fill = raintomorrow)) + geom_bar(position = "fill") ``` ### Example 4 {-} ```{r} # THINK: What variable goes on the y-axis? # For the curve, try adding span = 0.5 to tweak the curvature ggplot(woll, aes(y = temp3pm, x = date)) + geom_point() + geom_smooth(span = 0.5) ``` ```{r} # Instead of a curve that captures the general TREND, # draw a line that illustrates the movement of RAW temperatures from day to day # NOTE: We haven't learned this geom yet! Guess. ggplot(woll, aes(y = temp3pm, x = date)) + geom_line() ``` ### Example 5 {-} ```{r} # Plot temp3pm vs temp9am # Change the code in order to indicate the location to which each data point corresponds ggplot(weather, aes(y = temp3pm, x = temp9am, color = location)) + geom_point() ``` ```{r} # Change the code in order to indicate the location to which each data point corresponds # AND identify the days on which it rained / didn't raintoday ggplot(weather, aes(y = temp3pm, x = temp9am, color = location)) + geom_point() + facet_wrap(~ raintoday) ``` ```{r} # How many ways can you think to make that plot of temp3pm vs temp9am with info about location and rain? # Play around! ggplot(weather, aes(y = temp3pm, x = temp9am, color = location, shape = raintoday)) + geom_point() ``` ### Example 6 {-} ```{r} # Change the code in order to construct a line plot of temp3pm vs date for each separate location (no points!) ggplot(weather, aes(y = temp3pm, x = date, color = location)) + geom_line() ``` ### Example 7 {-} ```{r} # Plot the relationship of raintomorrow & raintoday # Change the code in order to indicate this relationship by location ggplot(weather, aes(x = raintoday, fill = raintomorrow)) + geom_bar(position = "fill") + facet_wrap(~ location) ``` ### Exercise 1: SAT scores {-} #### Part a {-} ```{r} # A histogram would work too! ggplot(education, aes(x = sat)) + geom_density() ``` #### Part b {-} average SAT scores range from roughly 800 to 1100. They appear bi-modal. ### Exercise 2: SAT Scores vs Per Pupil Spending & SAT Scores vs Salaries {-} #### Part a {-} ```{r} # Construct a plot of sat vs expend # Include a "best fit linear regression model" ggplot(education, aes(y = sat, x = expend)) + geom_point() + geom_smooth(method = "lm") ``` ```{r} # Construct a plot of sat vs salary # Include a "best fit linear regression model" ggplot(education, aes(y = sat, x = salary)) + geom_point() + geom_smooth(method = "lm") ``` #### Part b {-} The higher the student expenditures and teacher salaries, the worse the SAT performance. ### Exercise 3: SAT Scores vs Per Pupil Spending *and* Teacher Salaries {-} ```{r} ggplot(education, aes(y = sat, x = salary, color = expend)) + geom_point() + geom_smooth(method = "lm") ``` ### Exercise 4: Another Way to Incorporate Scale {-} ```{r} ggplot(education, aes(y = sat, x = salary, color = cut(expend, 2))) + geom_point() + geom_smooth(se = FALSE, method = "lm") ggplot(education, aes(y = sat, x = salary, color = cut(expend, 3))) + geom_point() + geom_smooth(se = FALSE, method = "lm") ``` States with lower salaries and expenditures tend to have higher SAT scores. ### Exercise 5: Finally an Explanation {-} #### Part a {-} ```{r} ggplot(education, aes(x = fracCat)) + geom_bar() ``` #### Part b {-} The more students in a state that take the SAT, the lower the average scores tend to be. This is probably related to self-selection. ```{r} ggplot(education, aes(x = sat, fill = fracCat)) + geom_density(alpha = 0.5) ``` #### Part c {-} When we control for the fraction of students that take the SAT, SAT scores *increase* with expenditure. ```{r} ggplot(education, aes(y = sat, x = expend, color = fracCat)) + geom_point() + geom_smooth(method = "lm") ``` #### Part d {-} Student participation tends to be lower among states with lower expenditures (which are likely also the states with higher ed institutions that haven't historically required the SAT). Those same states tend to have higher SAT scores because of the self-selection of who participates. ### Exercise 6: Heat Maps {-} #### Part a {-} ```{r fig.width = 8, fig.height = 15} # Remove the "State" column and use it to label the rows # Then scale the variables plot_data <- education |> column_to_rownames("State") |> data.matrix() |> scale() # Load the gplots package needed for heatmaps library(gplots) # Construct heatmap 1 heatmap.2(plot_data, dendrogram = "none", Rowv = NA, scale = "column", keysize = 0.7, density.info = "none", col = hcl.colors(256), margins = c(10, 20), colsep = c(1:7), rowsep = (1:50), sepwidth = c(0.05, 0.05), sepcolor = "white", trace = "none" ) ``` ```{r fig.width = 8, fig.height = 15} # Construct heatmap 2 heatmap.2(plot_data, dendrogram = "none", Rowv = TRUE, ### WE CHANGED THIS FROM NA TO TRUE scale = "column", keysize = 0.7, density.info = "none", col = hcl.colors(256), margins = c(10, 20), colsep = c(1:7), rowsep = (1:50), sepwidth = c(0.05, 0.05), sepcolor = "white", trace = "none" ) ``` ```{r fig.width = 8, fig.height = 15} # Construct heatmap 3 heatmap.2(plot_data, dendrogram = "row", ### WE CHANGED THIS FROM "none" TO "row" Rowv = TRUE, scale = "column", keysize = 0.7, density.info = "none", col = hcl.colors(256), margins = c(10, 20), colsep = c(1:7), rowsep = (1:50), sepwidth = c(0.05, 0.05), sepcolor = "white", trace = "none" ) ``` #### Part b {-} - Similar values in verbal, math, and sat. - High contrast (an inverse relationship) verbal/math/sat scores and the fraction of students that take the SAT. - Outliers of Utah and California in ratio (more students per teacher). - While grouped, fraction and salary are not as similar to each other as the sat scores; it is also interesting to notice states that have high ratios have generally low expenditures per student. ### Exercise 7: Star Plots {-} #### Part a {-} MN is high on the SAT performance related metrics and low on everything else. MN is similar to Iowa, Kansas, Mississippi, Missouri, the Dakotas... ```{r fig.width = 10, fig.height = 20} stars(plot_data, flip.labels = FALSE, key.loc = c(10, 1.5), cex = 1, draw.segments = TRUE ) ``` #### Part b {-} When the states are in geographical ordering, we'd notice more easily that states in similar regions of the U.S. have similar patterns of these variables. ```{r fig.width = 10, fig.height = 10} stars(plot_data, flip.labels = FALSE, locations = data.matrix(as.data.frame(state.center)), # added external data to arrange by geo location key.loc = c(-110, 28), cex = 1, draw.segments = TRUE ) ``` </details>
