6 Spatial Viz

Learning Goals

Plot data points on top of a map (ggplot()).
Create choropleth maps (geom_map()).
Understand the basics of creating a map using leaflet, including adding points and choropleths to a base map.

Additional Resources

For more information about the topics covered in this chapter, refer to the resources below:

Creating maps with leaflet (YouTube) by Lisa Lendway
More leaflet (YouTube) by Lisa Lendway
Spatial data visualization (Chp 17, intro and 17.1, html) by Baumer et al
Detailed leaflet documenation (html)
leaflet cheat sheet (pdf)
Provider map previews (html)
Tutorial (html) by Andrew Ba Tran, investigative data reporter at Washington Post
For more advanced work with spatial mapping, GIS in R, etc. see the sf package (html).

Instructions

General

Be kind to yourself.
Collaborate with and be kind to others. You are expected to work together as a group.
Ask questions. Remember that we won’t discuss these exercises as a class.

Activity Specific

Help each other with the following:

Create a new Quarto document in the activities folder of your portfolio project and do not forgot to include it in _quarto.yml file. Then click the </> Code link at the top right corner of this page and copy the code into the created Quarto document. This is where you’ll take notes. Remember that the portfolio is yours, so take notes in whatever way is best for you.
Don’t start the Exercises section before we get there as a class. First, engage in class discussion and eventually collaborate with your group on the exercises!

Instructions

Run the following commands in the Console to install the packages used in this activity into your machine if they are not already installed.

install.packages(c("sf", "maps", "RColorBrewer", "gplots", "socviz", "leaflet", "devtools"))
devtools::install_github("ropensci/rnaturalearthhires")

6.1 Review

In the previous activity, we explored a Simpson’s Paradox–it seemed that:

States with higher spending…
tend to have lower average SAT scores.

BUT this was explained by a confounding or omitted or lurking variable: the % of students in a state that take the SAT:

States with higher spending…
tend to have a higher % of students of students that take the SAT…
which then “leads to” lower average SAT scores.

Thus, when controlling for the % of students that take the SAT, more spending is correlated with higher scores.

Let’s explore a Simpson’s paradox related to Mac!

Back in the 2000s, Macalester invested in insulating a few campus-owned houses, with the hopes of leading to energy savings. Former Mac prof Danny Kaplan accessed monthly data on energy use and other info for these addresses, before and after renovations:

  month year  price therms hdd address renovated       date
1     6 2005  35.21     21   0       a        no 2005-06-01
2     7 2005  37.37     21   0       a        no 2005-07-01
3     8 2005  36.93     21   3       a        no 2005-08-01
4     9 2005  62.36     39  61       a        no 2005-09-01
5    10 2005 184.15    120 416       a        no 2005-10-01
6    11 2005 433.35    286 845       a        no 2005-11-01

Included are the following variables:

variable	meaning
therms	a measure of energy use (the more energy used, the larger the therms)
address	a or b
renovated	whether the location had been renovated, yes or no
month	from 1 to 12
hdd	monthly heating degree days. a proxy measure of outside temperatures (the higher the hdd, the COLDER it was)

Instructions

Construct a plot that addresses each research question
Include a 1-sentence summary of the plot.

Example 1

What was range in, and typical, energy used each month, as measured by therms? How does this differ by address?

Example 2

How did energy use (therms) change over time (date) at the two addresses?

Example 3

How did the typical energy use (therms) at the two addresses change before and after they were renovated?

Example 4

That seems unfortunate that energy usage went up after renovations. But also fishy.

Take 5 minutes in your groups to try and explain what’s going on here. Think: What confounding, lurking, or omitted variable related to energy usage are we ignoring here? Try to make some plots to prove your point.

Example 5

Let’s summarize the punchlines by filling in the ???. It seemed that:

After renovation…
energy use increased.

BUT this was explained by a confounding or omitted or lurking variable: ???

After renovation…
???…
which then leads to higher energy use.

Thus, when controlling for ???, renovations led to decreased energy use.

6.2 New stuff

Types of spatial viz:

Point Maps: plotting locations of individual observations
example: bigfoot sightings

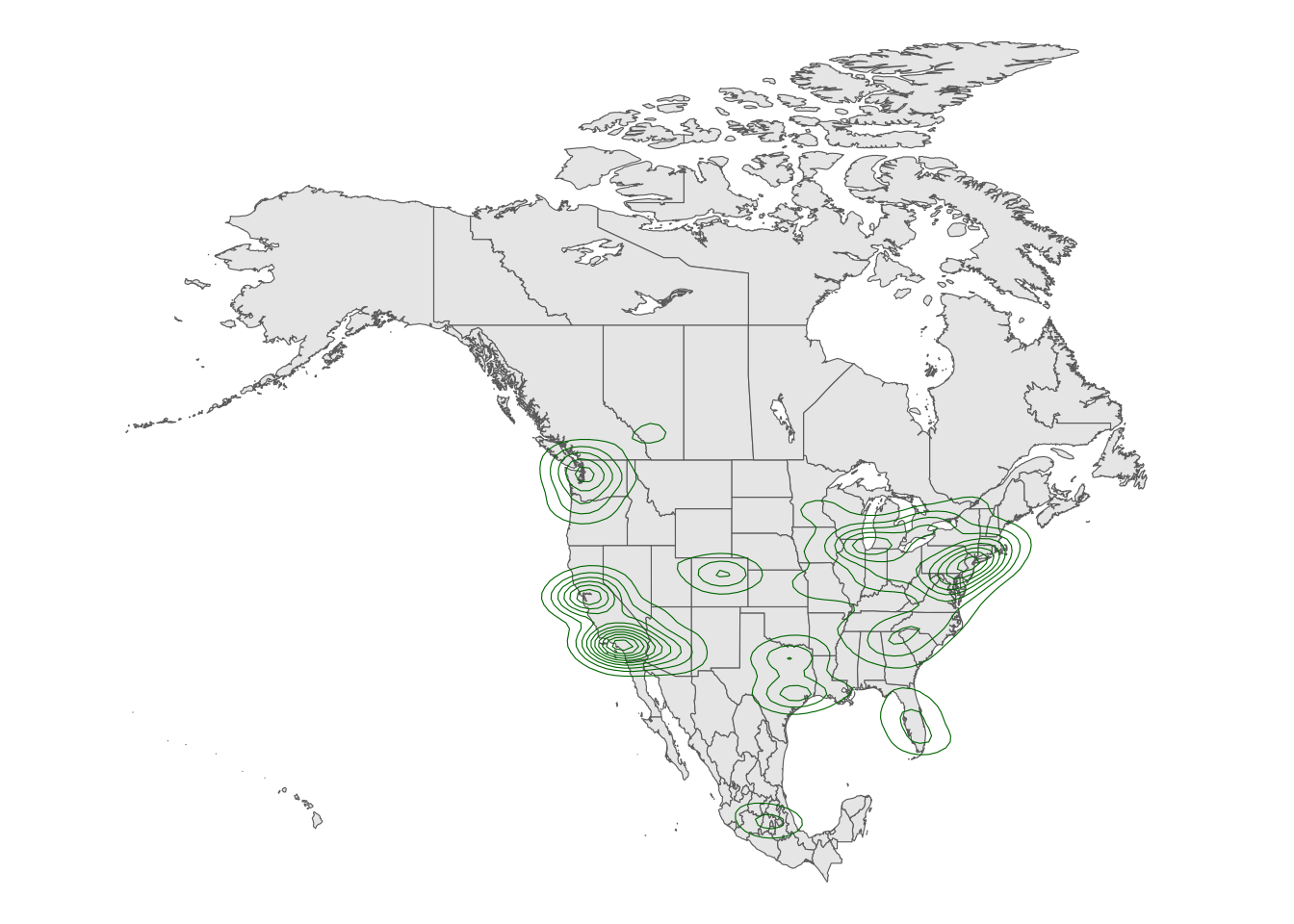

Contour Maps: plotting the density or distribution of observations (not the individual observations themselves)
Choropleth Maps: plotting outcomes in different regions
- NYT article on effects of redlining
- Minnesota Reformer article on how Mpls / St Paul voted on 2021 ballot measures related to mayoral, policing, and rent policies

These spatial maps can be static or dynamic/interactive.

6.3 Exercises

6.3.1 Preview

You’ll explore some R spatial viz tools below. In general, there are two important pieces to every map:

Piece 1: A dataset

This dataset must include either:

location coordinates for your points of interest (for point maps); or
variable outcomes for your regions of interest (for choropleth maps)

Piece 2: A background map

We need latitude and longitude coordinates to specify the boundaries for your regions of interest (eg: countries, states). This is where it gets really sticky!

County-level, state-level, country-level, continent-level info live in multiple places.
Where we grab this info can depend upon whether we want to make a point map or a choropleth map. (The background maps can be used somewhat interchangeably, but it requires extra code :/)
Where we grab this info can also depend upon the structure of our data and how much data wrangling / cleaning we’re up for. For choropleth maps, the labels of regions in our data must match those in the background map. For example, if our data labels states with their abbreviations (eg: MN) and the background map refers to them as full names in lower case (eg: minnesota), we have to wrangle our data so that it matches the background map.

In short, the code for spatial viz gets very specialized. The goal of these exercises is to:

play around and experience the wide variety of spatial viz tools out there
understand the difference between point maps and choropleth maps
have fun

You can skip around as you wish and it’s totally fine if you don’t finish everything. Just come back at some point to play around.

6.3.2 Part 1: Interactive points on a map with `leaflet`

Leaflet is an open-source JavaScript library for creating maps. We can use it inside R through the leaflet package.

This uses a different plotting framework than ggplot2, but still has a tidyverse feel (which will become more clear as we learn other tidyverse tools!).

The general steps are as follows:

Create a map widget by calling leaflet() and telling it the data to use.
Add a base map using addTiles() (the default) or addProviderTiles().
Add layers to the map using layer functions (e.g. addMarkers(), addPolygons()).
Print the map widget to display it.

Exercise 1: A leaflet with markers / points

Earlier this semester, I asked for the latitude and longitude of one of your favorite places. I rounded these to the nearest whole number, so that they’re near to but not exactly at those places. Let’s load the data and map it!

fave_places <- read.csv("https://ajohns24.github.io/data/112/our_fave_places.csv")

# Check it out
head(fave_places)

  latitude longitude
1       46      -123
2       33        52
3       48       -90
4       36      -112
5       59        25
6       39      -106

Part a

You can use a “two-finger scroll” to zoom in and out.

# Load the leaflet package
library(leaflet)

# Just a plotting frame
leaflet(data = fave_places)

# Now what do we have?
leaflet(data = fave_places) |>
  addTiles()

# Now what do we have?
# longitude and latitude refer to the variables in our data
leaflet(data = fave_places) |>
  addTiles() |>
  addMarkers(lng = ~longitude, lat = ~latitude)

# Since we named them "longitude" and "latitude", the function
# automatically recognizes these variables. No need to write them!
leaflet(data = fave_places) |>
  addTiles() |>
  addMarkers()

Part b

PLAY AROUND! This map is interactive. Zoom in on one location. Keep zooming – what level of detail can you get into? How does that detail depend upon where you try to zoom in (thus what are the limitations of this tool)?

Exercise 2: Details

We can change all sorts of details in leaflet maps.

# Load package needed to change color
library(gplots)

# We can add colored circles instead of markers at each location
leaflet(data = fave_places) |>
  addTiles() |>
  addCircles(color = col2hex("red"))

# We can change the background
# Mark locations with yellow dots
# And connect the dots, in their order in the dataset, with green lines
# (These green lines don't mean anything here, but would if this were somebody's travel path!)
leaflet(data = fave_places) |>
  addProviderTiles("USGS") |>
  addCircles(weight = 10, opacity = 1, color = col2hex("yellow")) |>
  addPolylines(
    lng = ~longitude,
    lat = ~latitude,
    color = col2hex("green")
  )

In general:

addProviderTiles() changes the base map.
To explore all available provider base maps, type providers in the console. (Though some don’t work :/)
Use addMarkers() or addCircles() to mark locations. Type ?addControl into the console to pull up a help file which summarizes the aesthetics of these markers and how you can change them. For example:
- weight = how thick to make the lines, points, pixels
- opacity = transparency (like alpha in ggplot2)
- colors need to be in “hex” form. We used the col2hex() function from the gplots library to do that

Exercise 3: Your turn

The starbucks data, compiled by Danny Kaplan, contains information about every Starbucks in the world at the time the data were collected, including Latitude and Longitude:

# Import starbucks location data
starbucks <- read.csv("https://mac-stat.github.io/data/starbucks.csv")

Let’s focus on only those in Minnesota for now:

# Don't worry about the syntax
starbucks_mn <- starbucks |>
  filter(Country == "US", State.Province == "MN")

Create a leaflet map of the Starbucks locations in Minnesota. Keep it simple – go back to Exercise 1 for an example.

6.3.3 Part 2: Static points on a map

Leaflet is very powerful and fun. But:

It’s not great when we have lots of points to map – it takes lots of time.
It makes good interactive maps, but we often need a static map (eg: we can print interactive maps!).

Let’s explore how to make point maps with ggplot(), not leaflet().

Exercise 3: A simple scatterplot

Let’s start with the ggplot() tools we already know. Construct a scatterplot of all starbucks locations, not just those in Minnesota, with:

Latitude and Longitude coordinates (which goes on the y-axis?!)
Make the points transparent (alpha = 0.2) and smaller (size = 0.2)

It’s pretty cool that the plots we already know can provide some spatial context. But what don’t you like about this plot?

Exercise 4: Adding a country-level background

Let’s add a background map of country-level boundaries.

Part a

First, we can grab country-level boundaries from the rnaturalearth package.

# Load the package
library(rnaturalearth)

# Get info about country boundaries across the world
# in a "sf" or simple feature format
world_boundaries <- ne_countries(returnclass = "sf")

In your console, type world_boundaries to check out what’s stored there. Don’t print it our in your Rmd – printing it would be really messy there (even just the head()).

Part b

Run the chunks below to build up a new map.

# What does this code produce?
# What geom are we using for the point map?
ggplot(world_boundaries) +
  geom_sf()

# Load package needed to change map theme
library(mosaic)

# Add a point for each Starbucks
# NOTE: The Starbucks info is in our starbucks data, not world_boundaries
# How does this change how we use geom_point?!
ggplot(world_boundaries) +
  geom_sf() +
  geom_point(
    data = starbucks,
    aes(x = Longitude, y = Latitude),
    alpha = 0.3, size = 0.2, color = "darkgreen"
  ) +
  theme_map()

Part c

Summarize what you learned about Starbucks from this map.

Exercise 5: Zooming in on some countries

Instead of world_boundaries <- ne_countries(returnclass = 'sf') we could zoom in on…

the continent of Africa: ne_countries(continent = 'Africa', returnclass = 'sf')
a set of countries: ne_countries(country = c('france', 'united kingdom', 'germany'), returnclass = 'sf')
boundaries within a country: ne_states(country = 'united states of america', returnclass = 'sf')

Our goal here will be to map the Starbucks locations in Canada, Mexico, and the US.

Part a

To make this map, we again need two pieces of information.

Data on Starbucks for only Canada, Mexico, and the US, labeled as “CA”, “MX”, “US” in the starbucks data.

# We'll learn this syntax soon! Don't worry about it now.
starbucks_cma <- starbucks |>
  filter(Country %in% c('CA', 'MX', 'US'))

A background map of state- and national-level boundaries in Canada, Mexico, and the US. This requires ne_states() in the rnaturalearth package where the countries are labeled ‘canada’, ‘mexico’, ‘united states of america’.

cma_boundaries <- ne_states(
  country = c("canada", "mexico", "united states of america"),
  returnclass = "sf")

Part b

Make the map!

# Just the boundaries
ggplot(cma_boundaries) +
  geom_sf()

# Add the points
# And zoom in
ggplot(cma_boundaries) +
  geom_sf() +
  geom_point(
    data = starbucks_cma,
    aes(x = Longitude, y = Latitude),
    alpha = 0.3,
    size = 0.2,
    color = "darkgreen"
  ) +
  coord_sf(xlim = c(-179.14, -50)) +
  theme_map()

Exercise 6: A state and county-level map

Let’s get an even higher resolution map of Starbucks locations within the states of Minnesota, Wisconsin, North Dakota, and South Dakota, with a background map at the county-level.

Part a

To make this map, we again need two pieces of information.

Data on Starbucks for only the states of interest.

starbucks_midwest <- starbucks |>
  filter(State.Province %in% c("MN", "ND", "SD", "WI"))

A background map of state- and county-level boundaries in these states. This requires st_as_sf() in the sf package, and map() in the maps package, where the countries are labeled ‘minnesota’, ‘north dakota’, etc.

# Load packages
library(sf)
library(maps)

# Get the boundaries
midwest_boundaries <- st_as_sf(
  maps::map("county",
            region = c("minnesota", "wisconsin", "north dakota", "south dakota"),
            fill = TRUE, plot = FALSE))

# Check it out
head(midwest_boundaries)

Simple feature collection with 6 features and 1 field
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: -96.81268 ymin: 45.05167 xmax: -93.01397 ymax: 48.53526
Geodetic CRS:  +proj=longlat +ellps=clrk66 +no_defs +type=crs
                                     ID                           geom
minnesota,aitkin       minnesota,aitkin MULTIPOLYGON (((-93.03689 4...
minnesota,anoka         minnesota,anoka MULTIPOLYGON (((-93.51817 4...
minnesota,becker       minnesota,becker MULTIPOLYGON (((-95.14537 4...
minnesota,beltrami   minnesota,beltrami MULTIPOLYGON (((-95.58655 4...
minnesota,benton       minnesota,benton MULTIPOLYGON (((-93.77027 4...
minnesota,big stone minnesota,big stone MULTIPOLYGON (((-96.10794 4...

Part b

Adjust the code below to make the plot! Remove the # to run it.

# ggplot(___) +
#   geom___() +
#   geom___(
#     data = ___,
#     aes(x = ___, y = ___),
#     alpha = 0.7,
#     size = 0.2,
#     color = 'darkgreen'
#   ) +
#   theme_map()

Exercise 7: Contour maps

Especially when there are lots of point locations, and those locations start overlapping on a map, it can be tough to visualize areas of higher density. Consider the Starbucks locations in Canada, Mexico, and the US that we mapped earlier:

# Point map (we made this earlier)
ggplot(cma_boundaries) +
  geom_sf() +
  geom_point(
    data = starbucks_cma,
    aes(x = Longitude, y = Latitude),
    alpha = 0.3,
    size = 0.2,
    color = "darkgreen"
  ) +
  coord_sf(xlim = c(-179.14, -50), ylim = c(14.54, 83.11)) +
  theme_map()

Now check out the contour map.

# What changed in the plot?
# What changed in our code?!
ggplot(cma_boundaries) +
  geom_sf() +
  geom_density_2d(
    data = starbucks_cma,
    aes(x = Longitude, y = Latitude),
    size = 0.2,
    color = "darkgreen"
  ) +
  coord_sf(xlim = c(-179.14, -50), ylim = c(14.54, 83.11)) +
  theme_map()

6.3.4 Part 3: Choropleth maps

Spatial data isn’t always in the form of point locations! For example, recall the state and county-level data on presidential elections.

elections_by_state <-  read.csv("https://mac-stat.github.io/data/election_2020_by_state.csv")
elections_by_counties <- read.csv("https://mac-stat.github.io/data/election_2020_county.csv")

In these datasets, we’re interested in the overall election outcome by region (state or county), not the specific geographic location of some observation. Let’s wrangle our data first. We’ll focus on just a few variables of interest, and create a new variable (repub_20_categories) that discretizes the repub_pct_20 variable into increments of 5 percentage points (for states) or 10 percentage points (for counties):

# Don't worry about the code!

elections_by_state <- elections_by_state |>
  filter(state_abbr != "DC") |>
  select(state_name, state_abbr, repub_pct_20) |>
  mutate(repub_20_categories =
           cut(repub_pct_20,
               breaks = seq(30, 70, by = 5),
               labels = c("30-34", "35-39", "40-44", "45-49",
                          "50-54", "55-59", "60-64", "65-70"),
               include.lowest = TRUE))

elections_by_counties <- elections_by_counties |>
  select(state_name, state_abbr, county_name, county_fips,
          repub_pct_20, median_age, median_rent) |>
  mutate(repub_20_categories =
           cut(repub_pct_20,
               breaks = seq(0, 100, by = 10),
               labels = c("0-9", "10-19", "20-29", "30-39", "40-49",
                          "50-59", "60-69", "70-79", "80-89", "90-100"),
               include.lowest = TRUE))

Exercise 8: State-level choropleth maps

Let’s map the 2020 Republican support in each state, repub_pct_20.

Part a

We again need two pieces of information.

Data on elections in each state, which we already have: elections_by_state.
A background map of state boundaries in the US. The boundaries we used for point maps don’t work here. (Optional detail: they’re sf objects and we now need a data.frame object.) Instead, we can use the map_data() function from the ggplot2 package:

# Get the latitude and longitude coordinates of state boundaries
states_map <- map_data("state")

# Check it out
head(states_map)

       long      lat group order  region subregion
1 -87.46201 30.38968     1     1 alabama      <NA>
2 -87.48493 30.37249     1     2 alabama      <NA>
3 -87.52503 30.37249     1     3 alabama      <NA>
4 -87.53076 30.33239     1     4 alabama      <NA>
5 -87.57087 30.32665     1     5 alabama      <NA>
6 -87.58806 30.32665     1     6 alabama      <NA>

Pause

Important detail: Note that the region variable in states_map, and the state_name variable in elections_by_state both label states by the full name in lower case letters. This is critical to the background map and our data being able to communicate.

head(states_map)

       long      lat group order  region subregion
1 -87.46201 30.38968     1     1 alabama      <NA>
2 -87.48493 30.37249     1     2 alabama      <NA>
3 -87.52503 30.37249     1     3 alabama      <NA>
4 -87.53076 30.33239     1     4 alabama      <NA>
5 -87.57087 30.32665     1     5 alabama      <NA>
6 -87.58806 30.32665     1     6 alabama      <NA>

head(elections_by_state)

   state_name state_abbr repub_pct_20 repub_20_categories
1     alabama         AL        62.03               60-64
2    arkansas         AR        62.40               60-64
3     arizona         AZ        49.06               45-49
4  california         CA        34.33               30-34
5    colorado         CO        41.90               40-44
6 connecticut         CT        39.21               35-39

Part b

Now map repub_pct_20 by state.

# Note where the dataset, elections_by_state, is used
# Note where the background map, states_map, is used
ggplot(elections_by_state, aes(map_id = state_name, fill = repub_pct_20)) +
  geom_map(map = states_map) +
  expand_limits(x = states_map$long, y = states_map$lat) +
  theme_map()

# Make it nicer!
ggplot(elections_by_state, aes(map_id = state_name, fill = repub_pct_20)) +
  geom_map(map = states_map) +
  expand_limits(x = states_map$long, y = states_map$lat) +
  theme_map() +
  scale_fill_gradientn(name = "% Republican", colors = c("blue", "purple", "red"), values = scales::rescale(seq(0, 100, by = 5)))

It’s not easy to get fine control over the color scale for the quantitative repub_pct_20 variable. Instead, let’s plot the discretized version, repub_20_categories:

ggplot(elections_by_state, aes(map_id = state_name, fill = repub_20_categories)) +
  geom_map(map = states_map) +
  expand_limits(x = states_map$long, y = states_map$lat) +
  theme_map()

# Load package needed for refining color palette
library(RColorBrewer)

# Now fix the colors
ggplot(elections_by_state, aes(map_id = state_name, fill = repub_20_categories)) +
  geom_map(map = states_map) +
  expand_limits(x = states_map$long, y = states_map$lat) +
  theme_map() +
  scale_fill_manual(values = rev(brewer.pal(8, "RdBu")), name = "% Republican")

Part c

We can add other layers, like points, on top of a choropleth map. Add a Starbucks layer! Do you notice any relationship between Starbucks and elections? Or are we just doing things at this point? ;)

# Get only the starbucks data from the US
starbucks_us <- starbucks |>
  filter(Country == "US")

# Map it
ggplot(elections_by_state, aes(map_id = state_name, fill = repub_20_categories)) +
  geom_map(map = states_map) +
  geom_point(
    data = starbucks_us,
    aes(x = Longitude, y = Latitude),
    size = 0.05,
    alpha = 0.2,
    inherit.aes = FALSE
  ) +
  expand_limits(x = states_map$long, y = states_map$lat) +
  theme_map() +
  scale_fill_manual(values = rev(brewer.pal(8, "RdBu")), name = "% Republican")

Details (if you’re curious)

map_id is a required aesthetic for geom_map().
- It specifies which variable in our dataset indicates the region (here state_name).
- It connects this variable (state_name) to the region variable in our mapping background (states_map). These variables must have the same possible outcomes in order to be matched up (alabama, alaska, arizona,…).
expand_limits() assures that the map covers the entire area it’s supposed to, by pulling longitudes and latitudes from the states_map.

Part d

We used geom_sf() for point maps. What geom do we use for choropleth maps?

Exercise 9: County-level choropleth maps

Let’s map the 2020 Republican support in each county.

Part a

We again need two pieces of information.

Data on elections in each county, which we already have: elections_by_county.
A background map of county boundaries in the US, stored in the county_map dataset in the socviz package:

# Get the latitude and longitude coordinates of county boundaries
library(socviz)
data(county_map)

# Check it out
head(county_map)

     long      lat order  hole piece            group    id
1 1225889 -1275020     1 FALSE     1 0500000US01001.1 01001
2 1235324 -1274008     2 FALSE     1 0500000US01001.1 01001
3 1244873 -1272331     3 FALSE     1 0500000US01001.1 01001
4 1244129 -1267515     4 FALSE     1 0500000US01001.1 01001
5 1272010 -1262889     5 FALSE     1 0500000US01001.1 01001
6 1276797 -1295514     6 FALSE     1 0500000US01001.1 01001

Pause

Important detail: We officially have a headache. Our county_map refers to each county by a 5-number id. Our elections_by_counties data refers to each county by a county_fips code, which is mostly the same as id, BUT drops any 0’s at the beginning of the code.

head(county_map)

     long      lat order  hole piece            group    id
1 1225889 -1275020     1 FALSE     1 0500000US01001.1 01001
2 1235324 -1274008     2 FALSE     1 0500000US01001.1 01001
3 1244873 -1272331     3 FALSE     1 0500000US01001.1 01001
4 1244129 -1267515     4 FALSE     1 0500000US01001.1 01001
5 1272010 -1262889     5 FALSE     1 0500000US01001.1 01001
6 1276797 -1295514     6 FALSE     1 0500000US01001.1 01001

head(elections_by_counties)

  state_name state_abbr    county_name county_fips repub_pct_20 median_age
1    Alabama         AL Autauga County        1001        71.44       37.5
2    Alabama         AL Baldwin County        1003        76.17       41.5
3    Alabama         AL Barbour County        1005        53.45       38.3
4    Alabama         AL    Bibb County        1007        78.43       39.4
5    Alabama         AL  Blount County        1009        89.57       39.6
6    Alabama         AL Bullock County        1011        24.84       39.6
  median_rent repub_20_categories
1         668               70-79
2         693               70-79
3         382               50-59
4         351               70-79
5         403               80-89
6         276               20-29

This just means that we have to wrangle the data so that it can communicate with the background map.

# Add 0's at the beginning of any fips_code that's fewer than 5 numbers long
# Don't worry about the syntax
elections_by_counties <- elections_by_counties |>
  mutate(county_fips = as.character(county_fips)) |>
  mutate(county_fips =
           ifelse(nchar(county_fips) == 4, paste0("0", county_fips), county_fips))

Part b

Now map Republican support by county. Let’s go straight to the discretized repub_20_categories variable, and a good color scale.

ggplot(elections_by_counties, aes(map_id = county_fips, fill = repub_20_categories)) +
  geom_map(map = county_map) +
  scale_fill_manual(values = rev(brewer.pal(10, "RdBu")), name = "% Republican") +
  expand_limits(x = county_map$long, y = county_map$lat) +
  theme_map() +
  theme(legend.position = "right") +
  coord_equal()

Exercise 10: Play around!

Construct county-level maps of median_rent and median_age.

Exercise 11: Choropleth maps with leaflet

Though ggplot() is often better for this purpose, we can also make choropleth maps with leaflet(). If you’re curious, check out the leaflet documentation:

https://rstudio.github.io/leaflet/choropleths.html

6.4 Solutions

Click for Solutions

Example 1

Both addresses used between 0 and 450 therms per month. There seem to be two types of months – those with lower use around 50 therms and those with higher use around 300/400 therms.

ggplot(energy, aes(x = therms, fill = address)) +
  geom_density(alpha = 0.5)

Example 2

Energy use is seasonal, with higher usage in winter months. It seems that address a uses slightly more energy.

ggplot(energy, aes(y = therms, x = date, color = address)) +
  geom_point()

ggplot(energy, aes(y = therms, x = date, color = address)) +
  geom_line()

Example 3

At both addresses, typical energy use increased after renovations.

ggplot(energy, aes(y = therms, x = renovated)) +
  geom_boxplot() +
  facet_wrap(~ address)

# A density plot isn't very helpful for comparing typical therms in this example!
ggplot(energy, aes(x = therms, fill = renovated)) +
  geom_density(alpha = 0.5) +
  facet_wrap(~ address)

Example 4

lurking variable = outdoor temperature (as reflected by hdd)

# It happened to be colder outside after renovations (higher hdd)
ggplot(energy, aes(y = hdd, x = renovated)) +
  geom_boxplot() +
  facet_wrap(~ address)

# When controlling for outside temps (via hdd), energy use decreased post-renovation
ggplot(energy, aes(y = therms, x = hdd, color = renovated)) +
  geom_point(alpha = 0.5) +
  geom_smooth(method = "lm", se = FALSE) +
  facet_wrap(~ address)

Example 5

BUT this was explained by a confounding or omitted or lurking variable: hdd (outdoor temperature)

After renovation…
it happened to be colder…
which then leads to higher energy use.

Thus, when controlling for outdoor temps, renovations led to decreased energy use.

Exercise 3: Your turn

leaflet(data = starbucks_mn) |>
  addTiles() |>
  addMarkers()

Exercise 3: A simple scatterplot

It would be nice to also have some actual reference maps of countries in the background.

ggplot(starbucks, aes(y = Latitude, x = Longitude)) +
  geom_point(size = 0.5)

Exercise 6: A state and county-level map

Part b

Adjust the code below to make the plot! Remove the # to run it.

ggplot(midwest_boundaries) +
  geom_sf() +
  geom_point(
    data = starbucks_midwest,
    aes(x = Longitude, y = Latitude),
    alpha = 0.7,
    size = 0.2,
    color = 'darkgreen'
  ) +
  theme_map()

Exercise 7: Contour maps

# Point map (we made this earlier)
ggplot(cma_boundaries) +
  geom_sf() +
  geom_point(
    data = starbucks_cma,
    aes(x = Longitude, y = Latitude),
    alpha = 0.3,
    size = 0.2,
    color = "darkgreen"
  ) +
  coord_sf(xlim = c(-179.14, -50), ylim = c(14.54, 83.11)) +
  theme_map()

Now check out the contour map.

# What changed in the plot?
# What changed in our code?!
ggplot(cma_boundaries) +
  geom_sf() +
  geom_density_2d(
    data = starbucks_cma,
    aes(x = Longitude, y = Latitude),
    size = 0.2,
    color = "darkgreen"
  ) +
  coord_sf(xlim = c(-179.14, -50), ylim = c(14.54, 83.11)) +
  theme_map()

Exercises Part 3: Choropleth maps

Spatial data isn’t always in the form of point locations! For example, recall the state and county-level data on presidential elections.

elections_by_state <-  read.csv("https://mac-stat.github.io/data/election_2020_by_state.csv")
elections_by_counties <- read.csv("https://mac-stat.github.io/data/election_2020_county.csv")

In these datasets, we’re interested in the overall election outcome by region (state or county), not the specific geographic location of some observation. Let’s wrangle our data first.

We’ll focus on just a few variables of interest, and create a new variable (repub_20_categories) that discretizes the repub_pct_20 variable into increments of 5 percentage points (for states) or 10 percentage points (for counties):

# Don't worry about the code!

elections_by_state <- elections_by_state |>
  filter(state_abbr != "DC") |>
  select(state_name, state_abbr, repub_pct_20) |>
  mutate(repub_20_categories =
           cut(repub_pct_20,
               breaks = seq(30, 70, by = 5),
               labels = c("30-34", "35-39", "40-44", "45-49",
                          "50-54", "55-59", "60-64", "65-70"),
               include.lowest = TRUE))

elections_by_counties <- elections_by_counties |>
  select(state_name, state_abbr, county_name, county_fips,
          repub_pct_20, median_age, median_rent) |>
  mutate(repub_20_categories =
           cut(repub_pct_20,
               breaks = seq(0, 100, by = 10),
               labels = c("0-9", "10-19", "20-29", "30-39", "40-49",
                          "50-59", "60-69", "70-79", "80-89", "90-100"),
               include.lowest = TRUE))

# Add 0's at the beginning of any fips_code that's fewer than 5 numbers long
# Don't worry about the syntax
elections_by_counties <- elections_by_counties |>
  mutate(county_fips = as.character(county_fips)) |>
  mutate(county_fips =
           ifelse(nchar(county_fips) == 4, paste0("0", county_fips), county_fips))

Exercise 8: State-level choropleth maps

Part d

geom_map()

Exercise 10: Play around!

ggplot(elections_by_counties, aes(map_id = county_fips, fill = median_rent)) +
  geom_map(map = county_map) +
  expand_limits(x = county_map$long, y = county_map$lat) +
  theme_map() +
  theme(legend.position = "right") +
  coord_equal() +
  scale_fill_gradientn(name = "median rent", colors = c("white", "lightgreen", "darkgreen"))

ggplot(elections_by_counties, aes(map_id = county_fips, fill = median_age)) +
  geom_map(map = county_map) +
  expand_limits(x = county_map$long, y = county_map$lat) +
  theme_map() +
  theme(legend.position = "right") +
  coord_equal() +
  scale_fill_gradientn(name = "median age", colors = terrain.colors(10))

6.1 Review

Example 1

Example 2

Example 3

Example 4

Example 5

6.2 New stuff

6.3 Exercises

6.3.1 Preview

6.3.2 Part 1: Interactive points on a map with leaflet

Exercise 1: A leaflet with markers / points

Part a

Part b

Exercise 2: Details

Exercise 3: Your turn

6.3.3 Part 2: Static points on a map

Exercise 3: A simple scatterplot

Exercise 4: Adding a country-level background

Part a

Part b

Part c

Exercise 5: Zooming in on some countries

Part a

Part b

Exercise 6: A state and county-level map

Part a

Part b

Exercise 7: Contour maps

6.3.4 Part 3: Choropleth maps

Exercise 8: State-level choropleth maps

Part a

Pause

Part b

Part c

Part d

Exercise 9: County-level choropleth maps

Part a

Pause

Part b

Exercise 10: Play around!

Exercise 11: Choropleth maps with leaflet

6.4 Solutions

Example 1

Example 2

Example 3

Example 4

Example 5

Exercise 3: Your turn

Exercise 3: A simple scatterplot

Exercise 6: A state and county-level map

Part b

Exercise 7: Contour maps

Exercises Part 3: Choropleth maps

Exercise 8: State-level choropleth maps

Part d

Exercise 10: Play around!

6.3.2 Part 1: Interactive points on a map with `leaflet`
